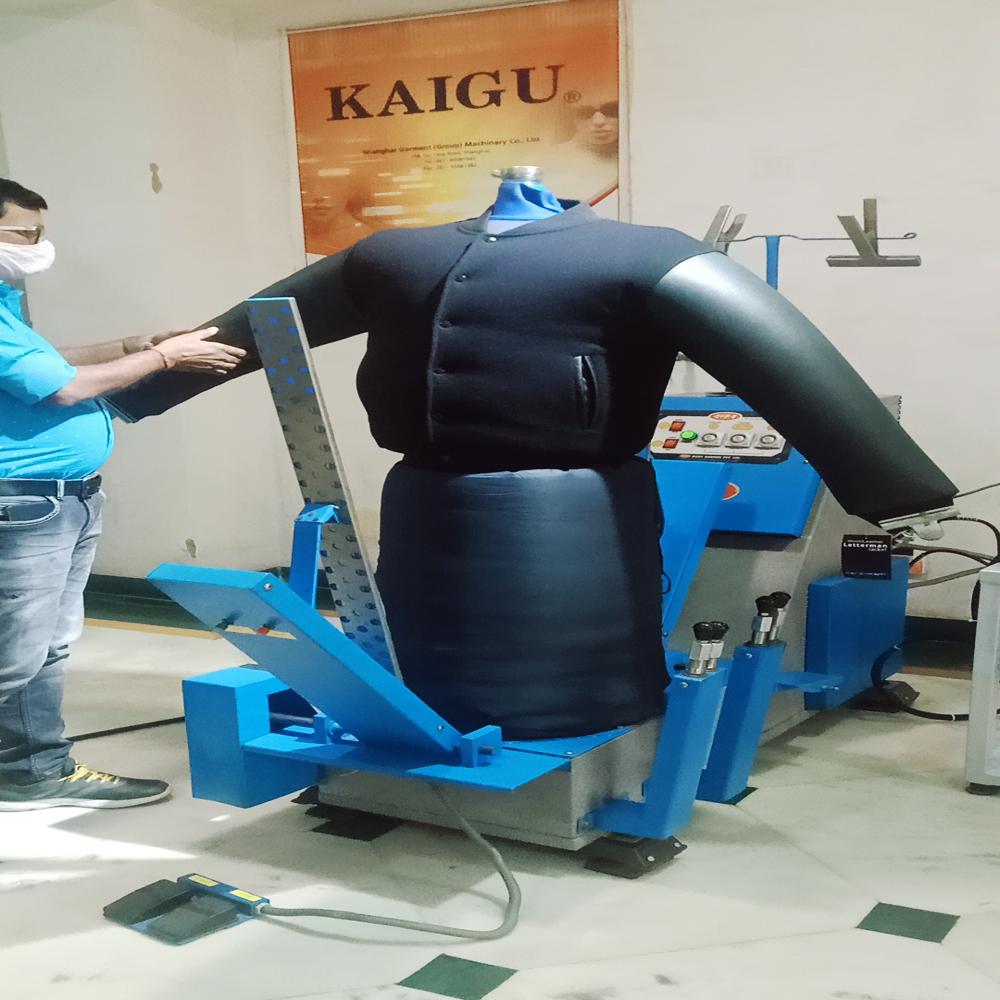

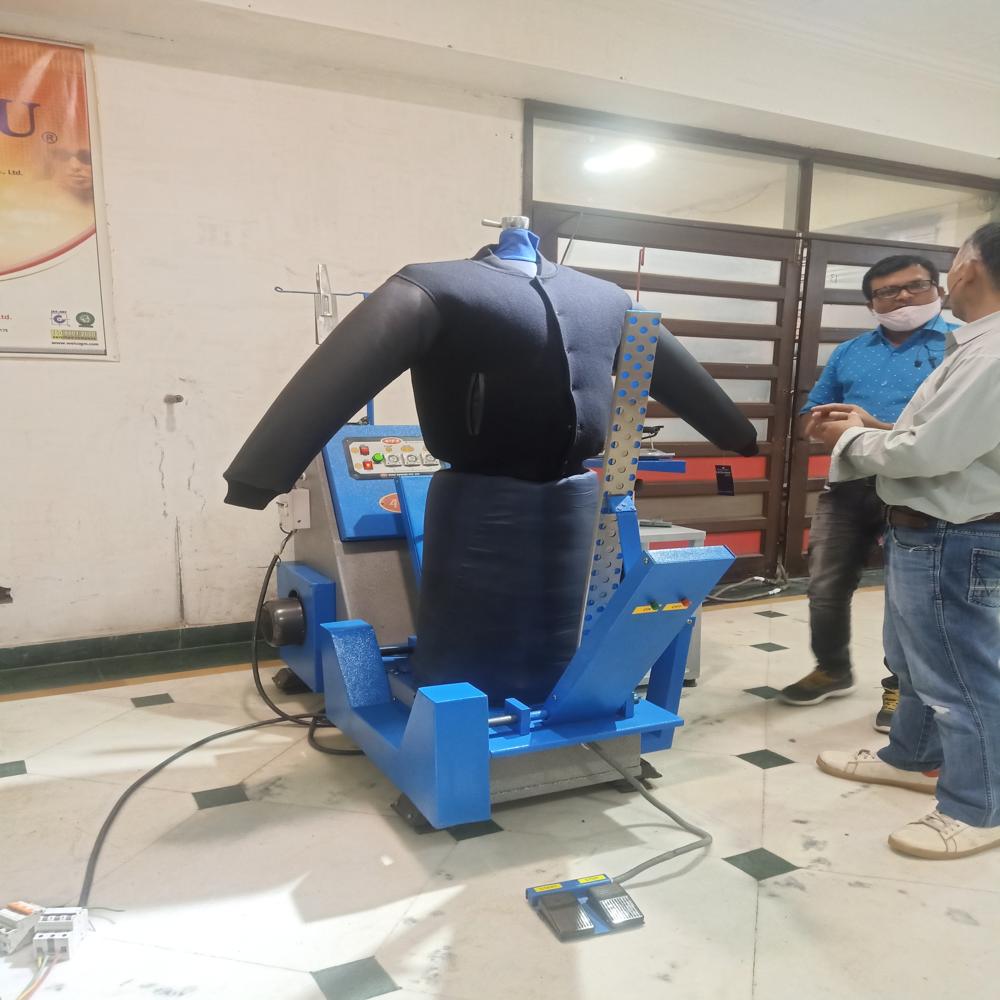

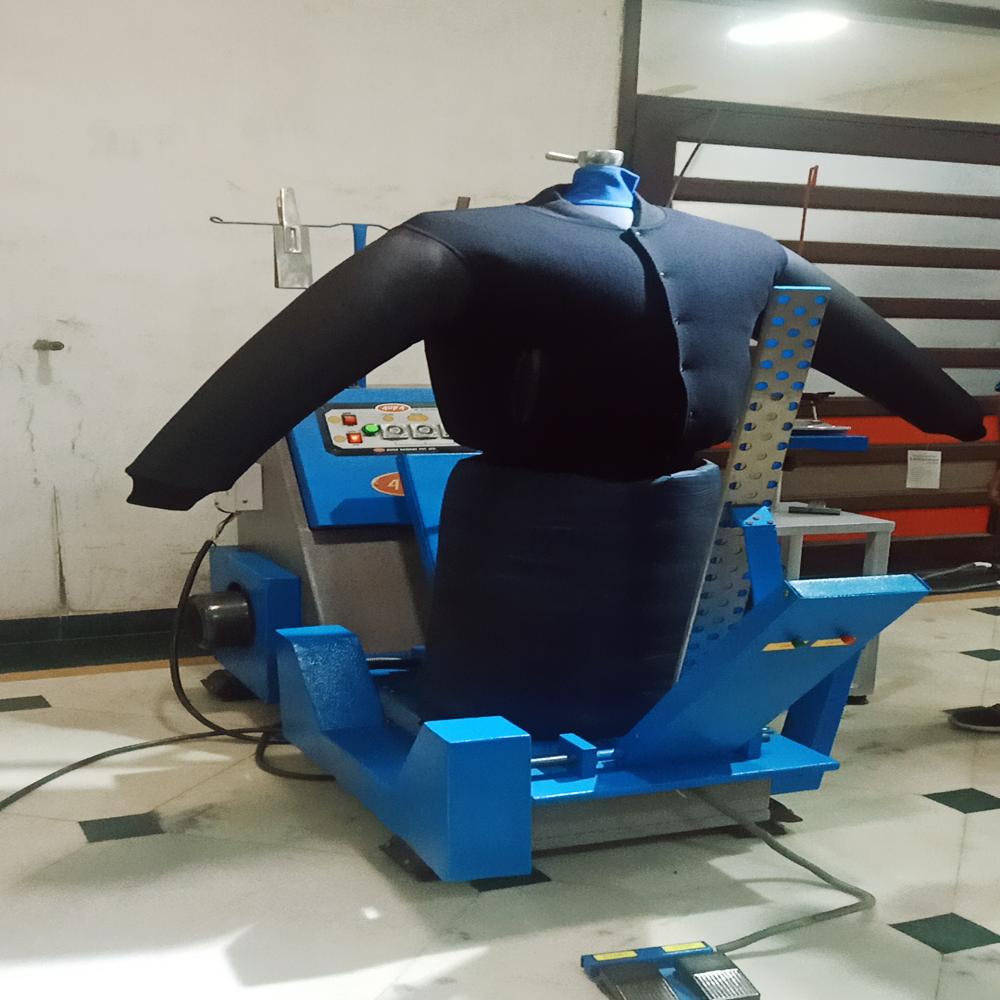

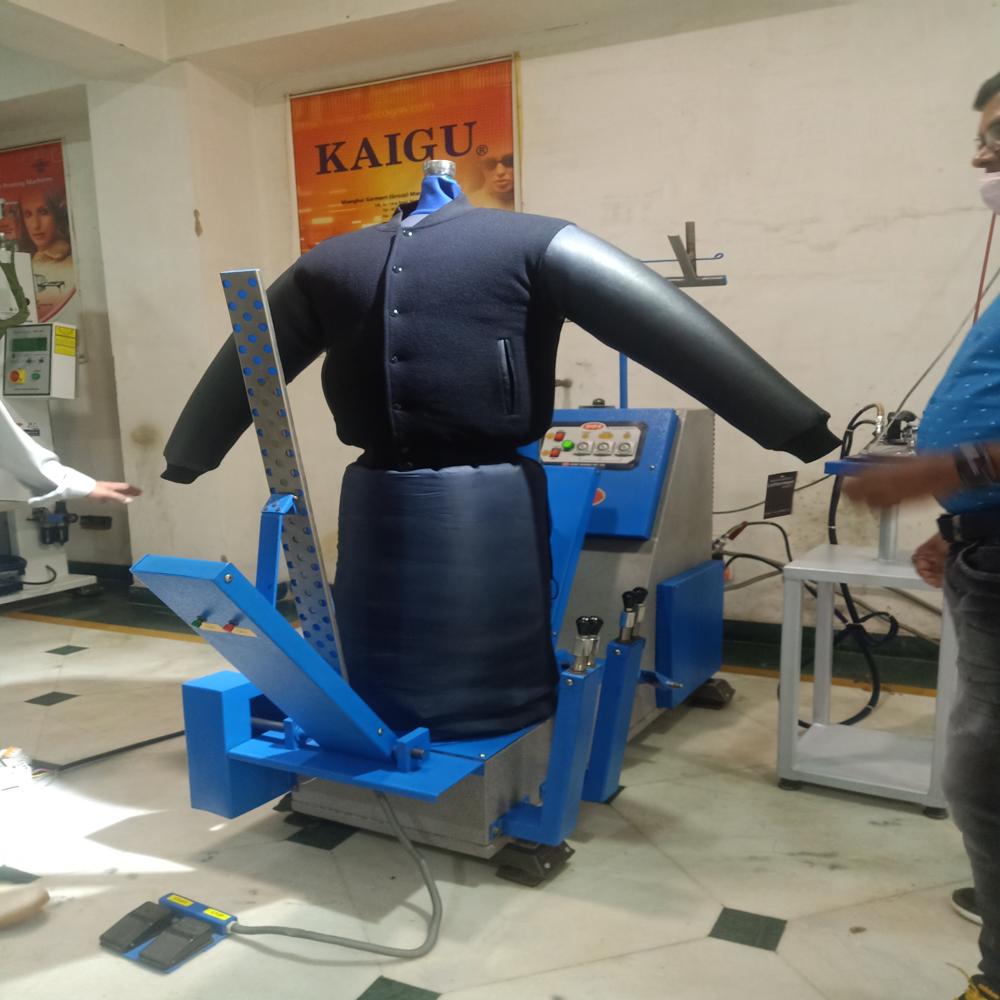

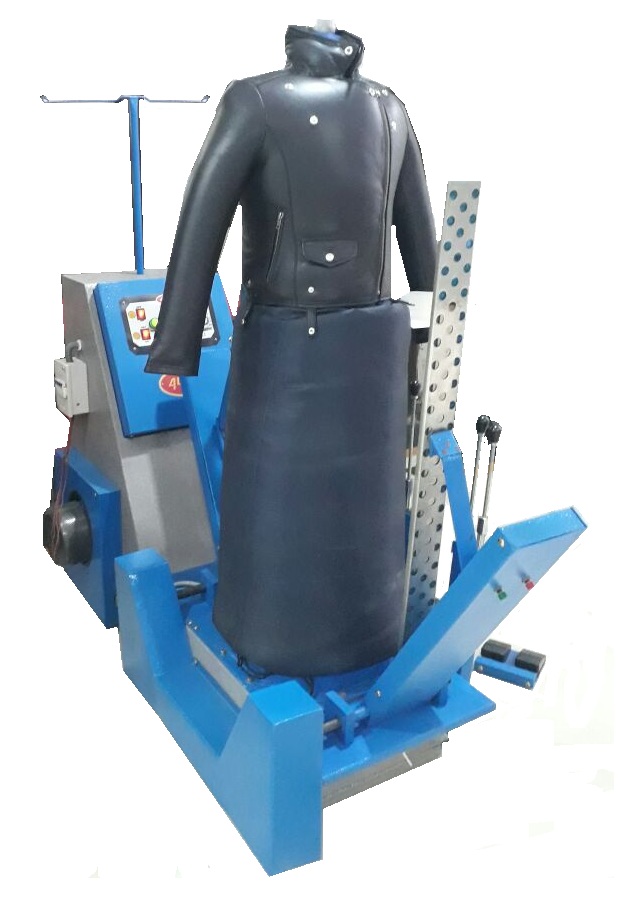

Form Finisher for Shirt Pressing Machine

Form Finisher for Shirt Pressing Machine Specification

Product Type
Garment Machinery

Material
stainless steel

Machinery Type
Other

Capacity
24 Hours Kg/hr

Voltage
Tri-phase And single phase Volt (v)

Power
low Megaampere ( MA)

Dimension (L*W*H)
975x430x1400 Millimeter (mm)

Color
Grey

Warranty
One year

Form Finisher for Shirt Pressing Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
.

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
20 Days

Sample Available
No

Sample Policy
Free samples are available

Packaging Details
Wooden packing

Main Export Market(s)
South America, Eastern Europe, Western Europe, Middle East, Africa, North America, Asia, Australia, Central America

Main Domestic Market
All India

Certifications
ISO, CE, MSME , IAF, DAC, GMP, OHSAS, CE

Form Finisher for Shirt Pressing Machine About

Form Finisher for Shirt Pressing Machine

Aura Body formers can fully meet the most discerning requirements for finishing jackets, coats and dresses in the laundry dry-cleaning and garments industries. Recently upgraded in both design and technical features, the AURA range of garment formers available in the following models.

AG-94 with connection to external steam supplies and silenced operation utilizing steam operated valves.

AG IB with a 20 Litters built in boiler and silenced operation using steam operated valves.

Features

Both the machine are programmed by three timers: Steam, Hot air and cold air. The combination of three cycles, makes the garment press perfectly.
The machines are constructed from stainless steel (INOX AISI 304); special powder coating on the body enables long rust fee life.
The AG-94 IB with inbuilt boiler is an energy saving garment former. The steam condensate can return to the steam generator for lower steam consumption and does not require a steam trap.
Available extras: Steam Iron assembly, Steam Gun, Water spray gun, alternative dummies which are interchangeable with the standard utility dummy which is supplied with the basic unit.

Technical Features

Model	AG-94 Premium	AG-92 Ultra - Premium
Air Working Pressure	6-8 bar	6-8 bar
Steam Working Pressure	4-5 bar	4-5 bar
steam Consumption	15-20 kg/hr	15-20 kg/hr
Overall Size (in mm)	975 x 4430 x 1400	1500 x 690 x 1600
Air Inlet	1/4"	1/4"
Steam Inlet	1/2"	1/2"
Boiler Drain	1/2"	1/2"
Pump Motor	2 kw	2 kw
Return Outlet	1/2"	1/2"
Fan Motor	1.5 kw	1.5 kw
voltage	415v3ph	415v3ph
steam

Product details

Automation Grade	Automatic
Brand	AURA
Power Consumption	120 W
Machine Type	Automatic
Model	AG-94 From Finisher
Material	Stainless Steel
Type	Form Finisher
Operation	Convenient to Operate
